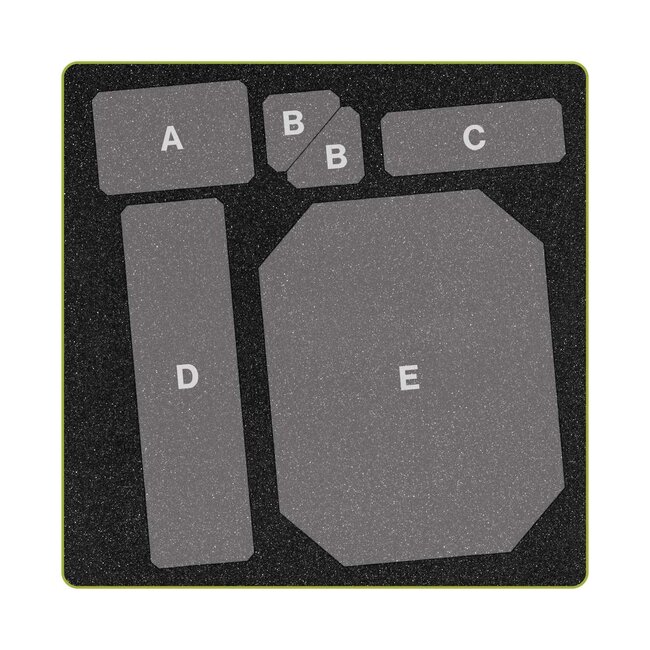

Cut Size: Shape A: 3”W x 2”H (7.6 cm x 5.1 cm), Shape B: 1 1/2”W x 1 1/2”H (3.8 cm x 3.8 cm), Shape C: 3 1/2”W x 1 1/4”H (8.9 cm x 3.2 cm), Shape D: 2”W x 7”H (5.1 cm x 17.8 cm), Shape E: 5 1/2” x 7”H (14 cm x 17.8 cm).

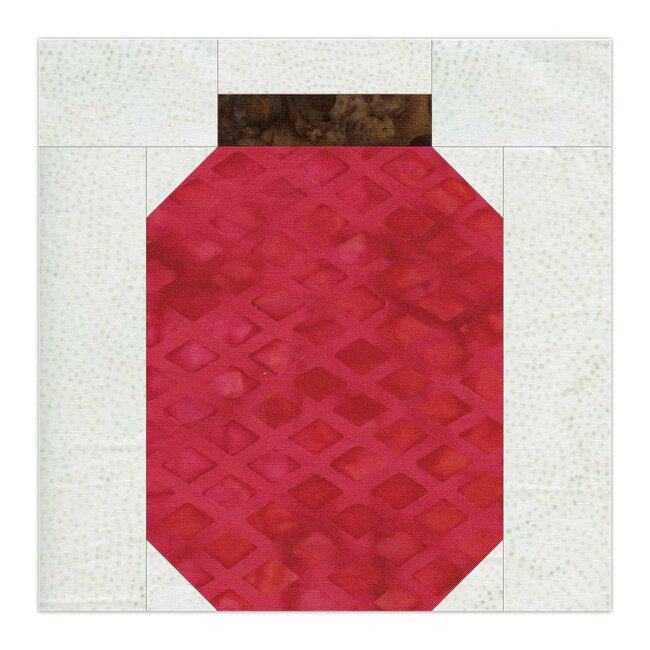

Finished Size: 8" Finished Block (20.3 cm)
Die Board Size: 10 in. x 10 in. (25.4 cm x 25.4 cm)
AQ Cutting Mat Required: GO! Cutting Mat, 10 in. x 10 in. (25.4 cm x 25.4 cm)
How to Die Cut 3-Color Canning Jar Pieced Blocks:
For best cutting results, position the fabric on the lengthwise grain (straight of grain) as it goes under the roller. Tip: The die is specially designed to cut one complete 3-color 8" finished block in one pass through the cutter.
- Fabric Color 1:
- Cut two 5 3/4" x 2 3/4" rectangles. Place right side up over shapes A & B to cut 2 A shapes and 4 B shapes.
- Cut one 4" x 1 3/4" rectangle. Place right side up over shape C to cut 1 shape.
- Cut two 2 1/2" x 7 1/2" rectangles. Place right side up over shape D to cut 2 shapes.
- Fabric Color 2: Cut one 4" x 1 3/4" rectangle. Place right side up over shape C to cut 1 shape.
- Fabric Color 3: Cut one 6" x 7 1/2" rectangle. Place right side up over shape E to cut 1 shape.
Why Quilters Love the GO! Canning Jar Pieced Die:
- Canning Jar Pieced is a Block on Board® (BOB®) die which means it’s specially designed to cut one 3-color, 8" finished block in one pass through the cutter.
- Canning Jar Pieced includes 6 shapes that are time-consuming to cut by hand.
- Canning Jar Pieced features specialized dog-ears and ¼" seam allowances for easy alignment and piecing.
- Canning Jar Pieced includes screen printed letters on die for easier piecing and organization of shapes.
- Free pattern downloads and step-by-step block assembly instructions are available to get you started.
- Layer Cake-friendly
- Do you EQ? If you have Electric Quilt® software, you can use it to create your own Canning Jar Pieced designs from their block library and cut your fabric.
AccuQuilt Benefits:
- Cut so much more fabric in less time.
- Get accurate cuts every time -- No slipping rulers or mistakes
- Easiest to use -- Simply place die on cutter, then fabric and cutting mat on top
- Save fabric with Two Tone Foam -- Get more out of your fabric by placing it only over the shape you want to cut.
- Safe to use -- No blades come anywhere near your fingers
Die Tips:
- With some fabrics, after cutting, a thread or two will remain where die blades meet. Snip threads with scissors.
- Blades on some dies are positioned at an angle. Align fabric to edge of shape, not edge of die board.
- Use good quality fabric to reduce fabric stretch.
- It's always a good idea to test cut one shape before cutting many shapes to ensure fabric orientation is correct.
